48V 1000W Bafang BBSHD Bike Mid Drive Motor BBS03 Electric Bicycle Conversion Kit G320.1000 w/ 52V 14Ah Battery in Samsung Cells

Brand Name BAFANG

Voltage 36V

Design Brushless

Wattage > 400w

Motor Type Side Hung Motor

Bafang controller designed inside the motor

Bafang motor Color Black

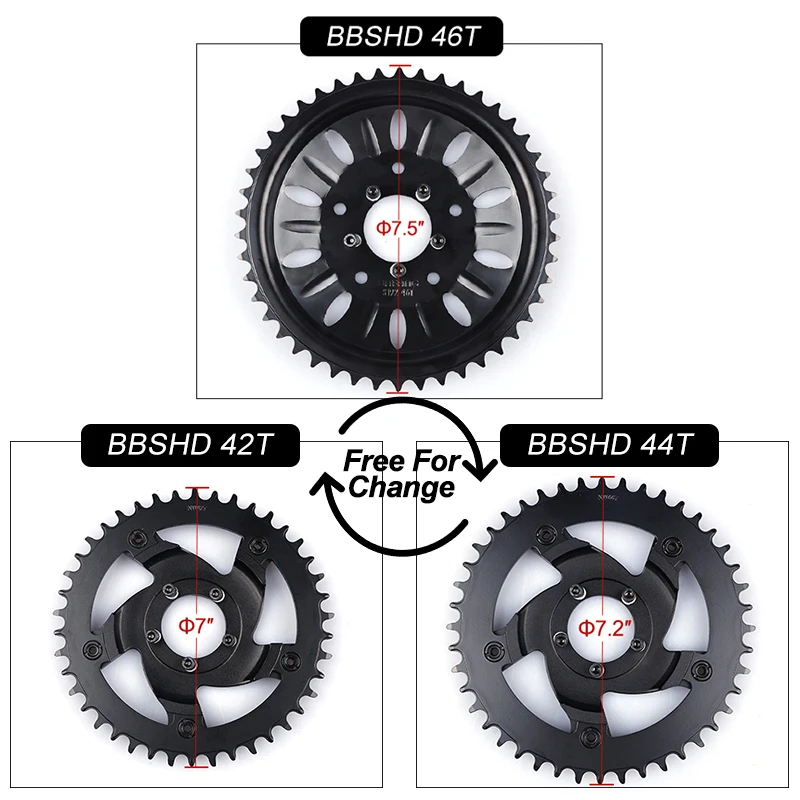

Chainwheel 42T/44T/46T

Bafang motor Model BBS02B

Bottom bracket 68MM

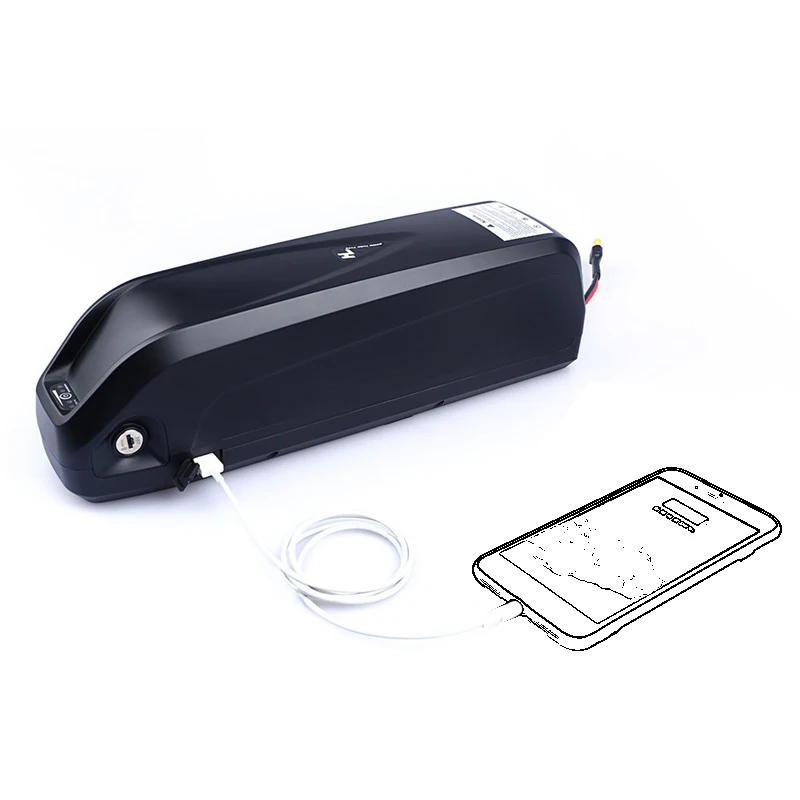

Battery Capacity 52V 14Ah

Cell type built in samsung cells

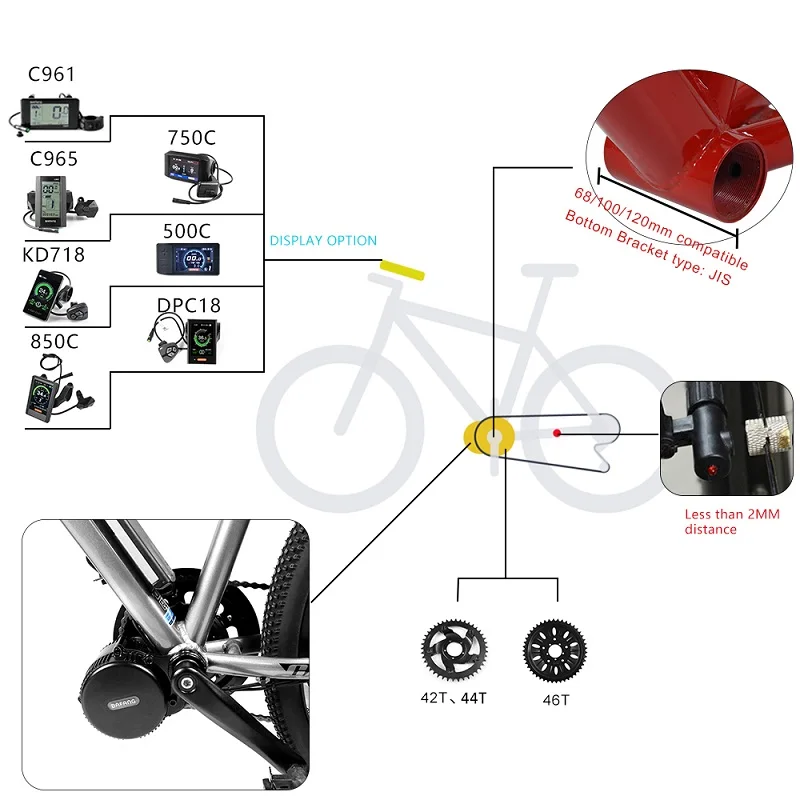

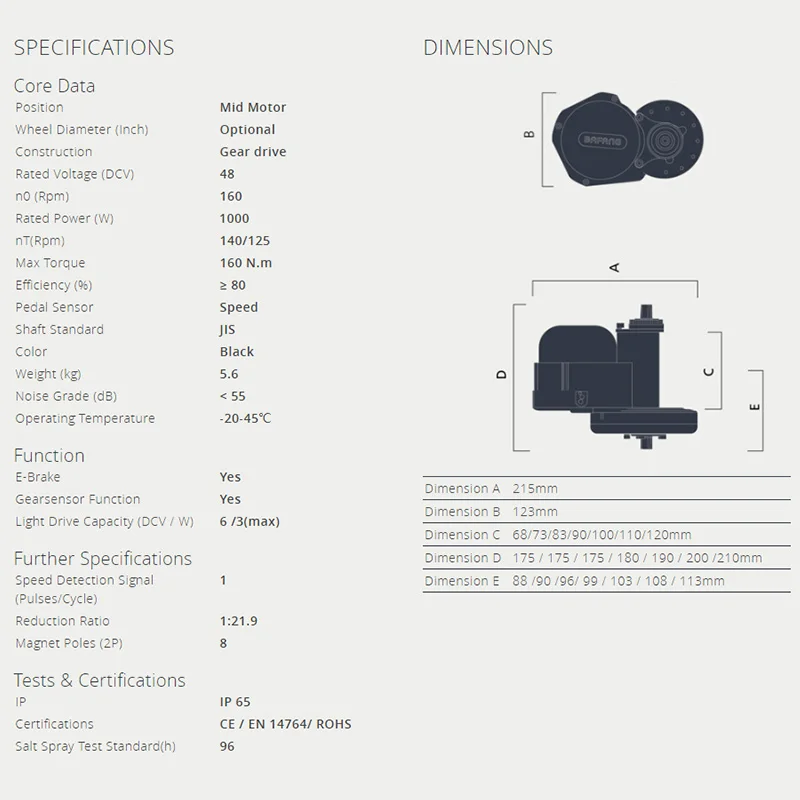

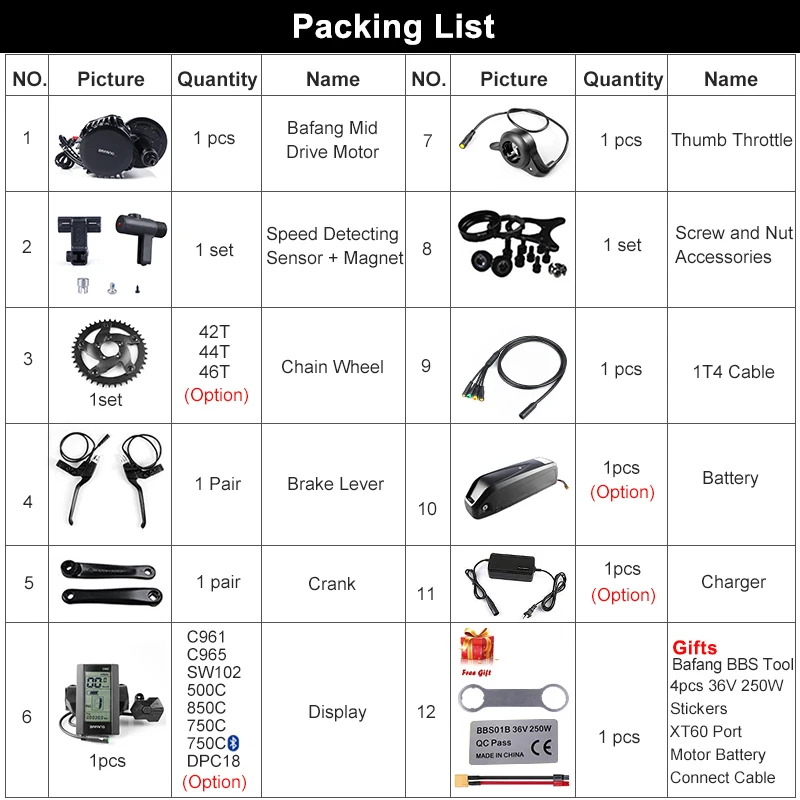

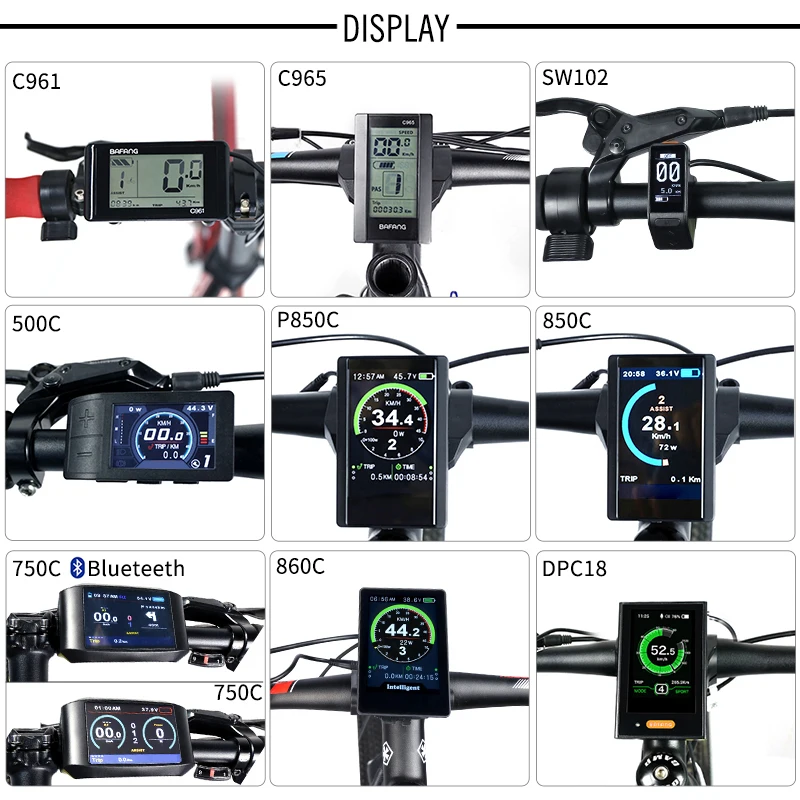

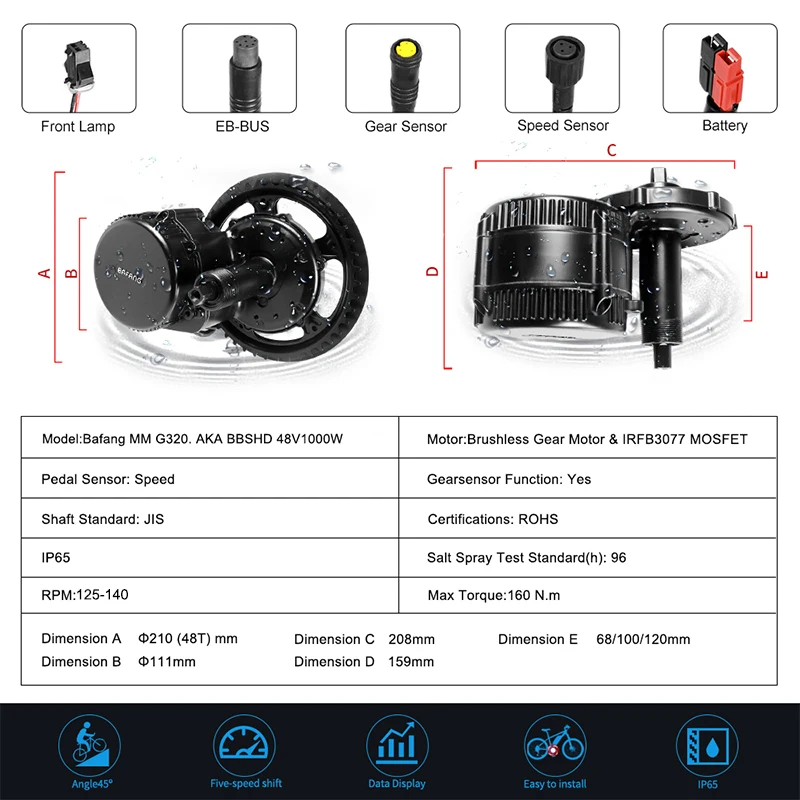

Hot Recommend: 48V 1000W BBSHD BBS03 Mid Drive Motor wIth Battery Motor Specification: Power:1000W Voltage:48V Controller Current: 30A Bracket bottom length: 68MM Display Working Temperature:-20-80C Waterproof Grade:IP65 52V 14Ah Specification: Normal Voltage: 52V Rated Capacity:14Ah Battery Cell:Built in Samsung 35ET 3500mah. Array mode:14s4p Battery size:367.2*90.1*111mm Battery Weight:3.6KG Max Constant Discharge Current:30A Peak current:60A Charge voltage:58.8V Way of Charge:CC/CV Cycle Life:1000 times Charge Temperature:-15-65℃ Discharge Temperature:-15-65℃ Protection Function:Over charge, Over discharge,Over current, Short circuit, Balance How do I know if this mid drive motor fits for my bike? D68mm fit 68mm or 73mm of bottom bracket D100mm fit 100mm of bottom bracket D120mm fit 120mm of bottom bracket Packaging List: 1 * 48V 1000W Mid Drive Motor built in Controller 1 Pair * Brake Lever ( can be changed to hydraulic brake sensor freely if you need) 1 Pair * Crank 1 Pair * Chainwheel (42T 44T/46 option) 1 Set * Thumb Throttle 1 Set * Speed Sensor 1 * Display(750C Bluetooth,DPC18, 860C,850C(new),850C,750C,500C,C965,C961opition) 1 * 4 in 1 Cable 1 * Accessories 1 * Battery built in samsung cells 1 * Battery Charger ( US/EU/UK/AU Option) Gifts: 1 * Install tool+ 1 * batery connector cable + 4pcs 36V 250W stickers
